EBL Reader Software

The Actisense team have developed powerful software tools to enable customers to view and diagnose any potential network problems quickly and easily.

The EBL Reader utility software allows EBL files recorded by NMEA Reader and Actisense Toolkit to be viewed and analysed.

These recorded data files enable basic diagnostics and analysis of NMEA 2000 and NMEA 0183 networks to be performed.

Further processing can be performed by exporting filtered and decoded data to Excel spreadsheet.

Log files can be analysed by the installer and also sent to Actisense support to aidea support ticket.

The EBL Reader utility software allows any EBL log files recorded by NMEA Reader to be viewed.

These recorded data files enable basic diagnostics and the analysis of NMEA 2000 and NMEA 0183 network problems.

This tool has been designed to make life easier for the installer as logged files from NMEA Reader can be viewed and analysed.

It now also has added support for the new CAN-Raw (BST-95) message format that is used for all data logging on Actisense W2K-1.

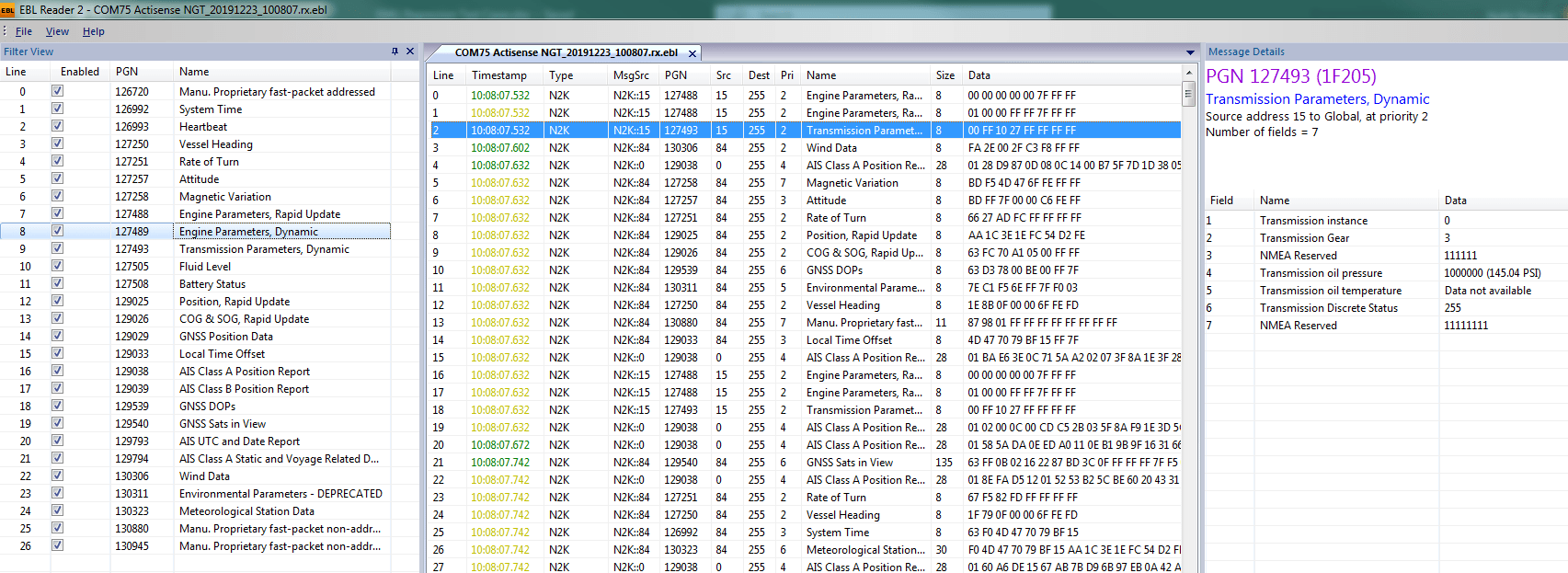

Displays log files saved by NMEA Reader and Actisense Toolkit of time-stamped NMEA 0183 or NMEA 2000 data

Provides detailed information on selection

Displays text files of NMEA 0183 sentences

Actisense is dedicated to providing up-to-date software and resources for our products. Download your software and read the associated download information below:
